Description:

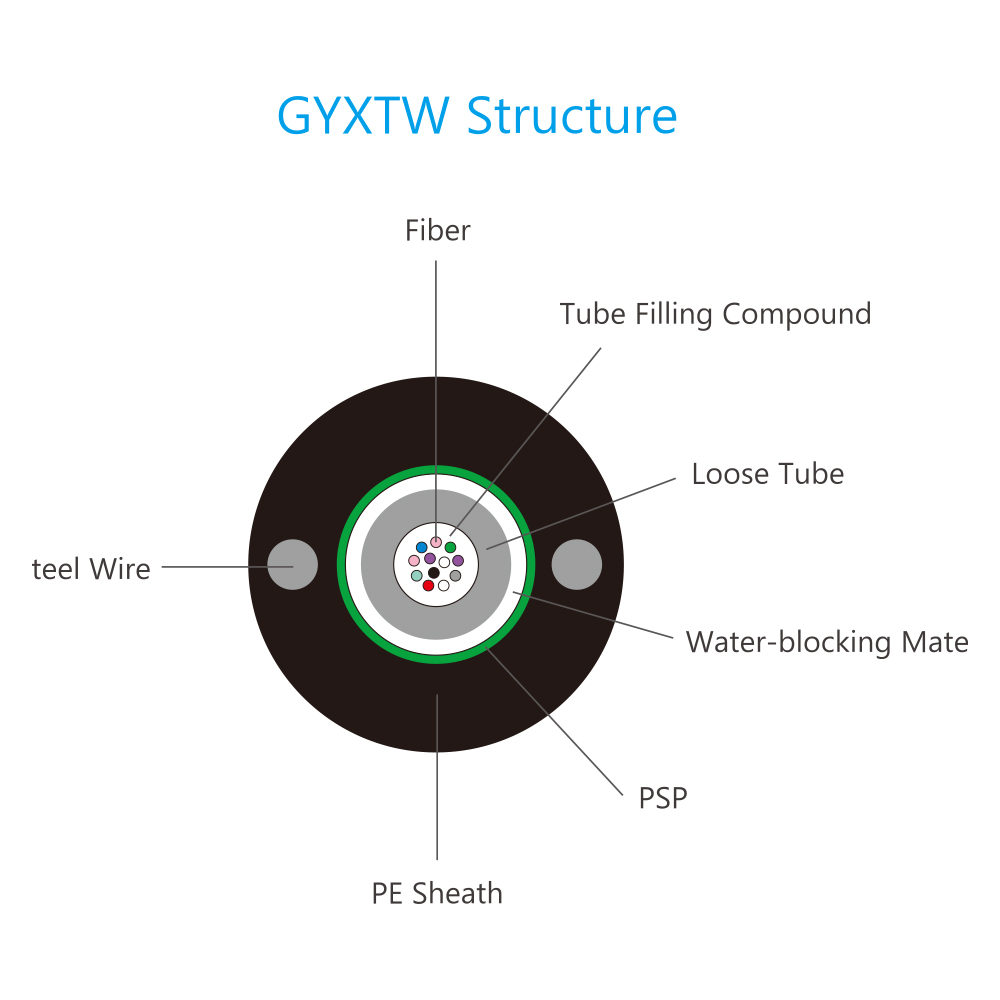

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with awater-resistant filling compound.Thetube is wrapped with a layer of PSP longitudinally. Between the PSP andthe loose tube water-blocking material is applied to keep the cable compact and watertight.Two parallel steel wires are placed at the two sidesof the steel tape.The parallel steel wires are placed at the two sides tape.The cable is completed with a polyethylene (PE) sheath.
Characteristics:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
rush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Application: duct/aerial
Standards:
INGO GYXTW cable complies with standard YD/T 769-2003.
Technical Parameters:
| Cable Type (Increased by 2 fibers) | Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short term (N) | Crush Resistance Long/Short term (N/100mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| GYXTW | 4 | 8 | 60 | 600/1500 | 300/1000 | 10D/20D |
Storage/Operating Temperature:-40℃ to +70℃
