Description:

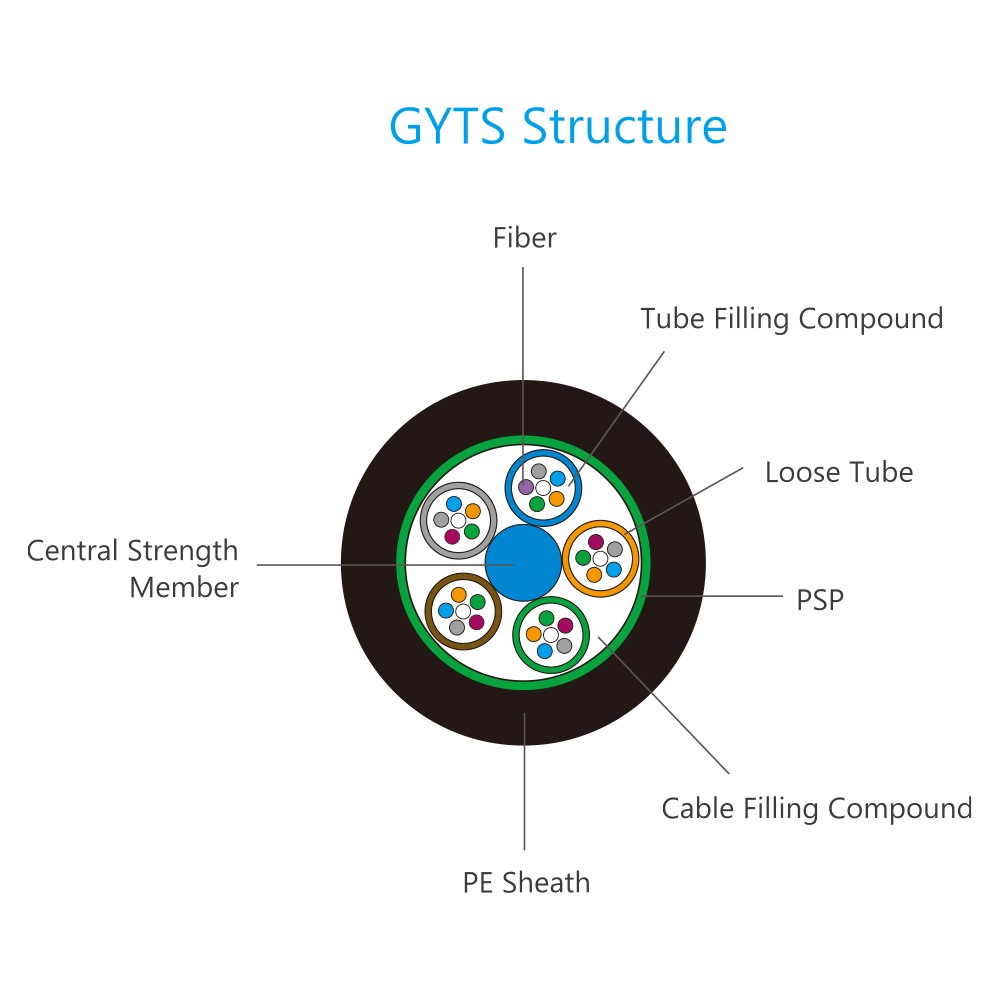

The fibers, 250um, are positioned in a loose tube made of a high modulusplastic.The tubes are filled with a water-resistant filling compound.A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,witch is filled with the filling compound to protect it from water ingress.Then, the cable is completed with a PE sheath.

Characteristics:

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Special designed compact structure is good at preventing loosetubes from shrinking

Crush resistance and flexibility

PE sheath protects cable from ultraviolet radiation

The following measures are taken to ensure

the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

PSP enhancing moisture-proof

Application: duct/aerial/direct buride

Standards:

INGO GYTS cable complies with standard YD/T901-2001 as well as IEC60794-1

Technical Parameters:

Storage/Operating Temperature:-40℃ to +70℃
