Description:

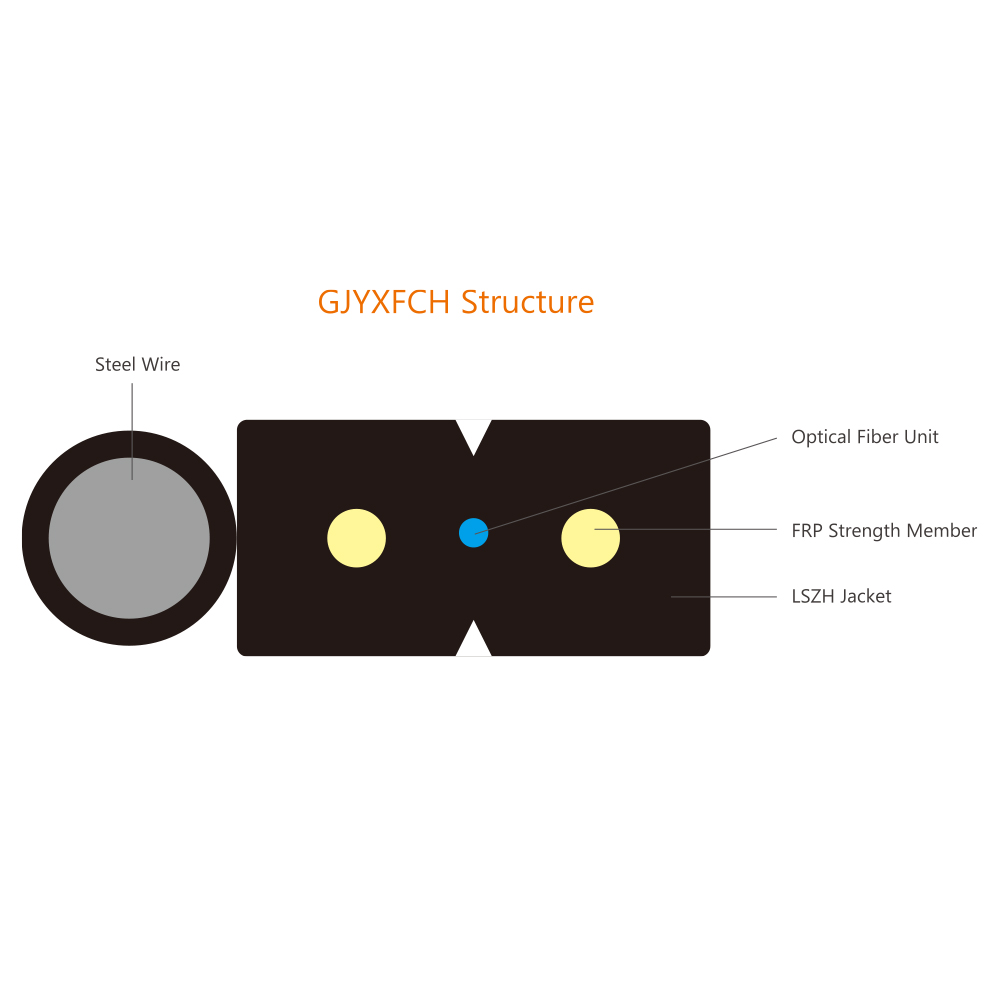

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.
Characteristics:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
Single steel wire as the additional strength member ensure good performance of tensile strength.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.
Technical Parameters:
| Cable Code | Fiber Count | Cable Size (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short term(N) | Crush Resistance Long/Short term(N/100mm) | Bending Radius Dynamic/Static(mm) |
|---|---|---|---|---|---|---|
| GJYXFCH | 1 | (2.0±0.1)x(5.2±0.1) | 20 | 300/600 | 2000 | 15/30 |
| GJYXFCH | 2 | (2.0±0.1)x(5.2±0.1) | 20 | 300/600 | 2000 | 15/30 |
| GJYXFCH | 4 | (2.0±0.1)x(5.2±0.1) | 20 | 300/600 | 2000 | 15/30 |
Storage/Operating Temperature:-20℃ to +60℃
